Chinese in OS X 10.10 Yosemite

What's New

  • All Apple computers that can run OS X 10.9 Mavericks can run OS X 10.10 Yosemite. Mavericks and Yosemite are similar with regard to Chinese, with ongoing improvements built upon the changes introduced in Mountain Lion.
  • Mavericks introduced two new Chinese font families, for a total of ten since Mountain Lion, plus five new TC fonts within the Kaiti and Songti families.
  • Mavericks introduced better dictionaries for the Pinyin input methods, better trackpad handwriting (tolerates poor or nonexistent stroke order), and better support for mainland Chinese social media, search, and email.
  • Yosemite takes an additional step, introducing "context-based Chinese input methods," which take the emerging context of the sentence into account in choosing/ordering suggestions/candidates as you type. This new feature alone makes upgrading to Yosemite from Mavericks a good idea.
  • Another addition in Mavericks/Yosemite is the new Simplified Chinese–English translation dictionary (Oxford Simplified Chinese–English Dictionary) for the Dictionary app, which also works with the Look Up feature in OS X.

Installation

In System Preferences... Language & Region, you will find a list of "Preferred languages." Chinese is automatically added to this list when you install the Chinese input methods, but you can also add to the list and arrange it manually. The language at the top is used by the Finder. Adjustments to this list affect the default font behavior in applications that use Apple's built-in text engine, like Mail, Safari, and Pages. Unless you are running the system (i.e., the Finder) in an East Asian language, we recommend the following order: Simplified Chinese (简体中文), Traditional Chinese (繁體中文), Japanese (日本語), Korean (한국어).

Fonts

You will find four Chinese fonts in the /System/Library/Fonts folder. STHeiti Light.ttc and STHeiti Medium.ttc are the Yosemite system fonts. STHeiti Thin.ttc and STHeiti Ultralight.ttc are for iCloud/iOS integration, and not available in OS X. The remainder reside in the /Library/Fonts folder.

Let's start with the basic fonts enabled by default:

Font name File name Foundry Version Date Charset
Heiti SC Light
Heiti TC Light
STHeiti Light.ttc SinoType 10.0d4e2 2014-08-05 Unicode+
Heiti SC Medium
Heiti TC Medium
STHeiti Medium.ttc SinoType 10.0d4e2 2014-08-05 Unicode+
STHeiti Light 华文细黑.ttf SinoType 6.1d4e1 2010-08-21 GB18030
STHeiti Regular 华文黑体.ttf SinoType 6.1d2e1 2008-11-18 GB18030
Kaiti SC Regular
Kaiti SC Bold†
Kaiti SC Black†
Kaiti TC Regular
Kaiti TC Bold
STKaiti Regular
Kaiti.ttc SinoType 9.0d11 2013-08-16 GB18030 [?]
Songti SC Light
Songti SC Regular
Songti SC Bold
Songti SC Black†
Songti TC Light
Songti TC Regular
Songti TC Bold
STSong Regular
Songti.ttc SinoType 10.0d1e2 2014-08-21 GB18030 [?]
STFangsong Regular 华文仿宋.ttf SinoType 8.0d5e1 2012-05-04 GB18030
LiHei Pro Medium 儷黑 Pro.ttf Dynacomware 6.0d4e1 2007-04-06 Big-5E
HKSCS
LiSong Pro Light 儷宋 Pro.ttf Dynacomware 6.0d4e1 2007-04-06 Big-5E
HKSCS

† = Limited to the GB2312 character set.

In addition, Apple maintains a set of old Chinese Language Kit and Mac OS 9 fonts, for backward-compatibility reasons. These fonts are hidden in Yosemite:

  • GB2312: Hei, Kai
  • Big Five: Apple LiGothic Medium, Apple LiSung Light, BiauKai

Finally, there is a set of ten additional Chinese fonts:

Font name File name Foundry Version Date Charset
Yuanti SC Light
Yuanti SC Regular
Yuanti SC Bold
Yuanti.ttc SinoType 10.0d3 2014-07-11 GB18030
Xingkai SC Light
Xingkai SC Bold
Xingkai.ttc SinoType 8.0d1e1 2012-06-19 GB2312
Baoli SC Regular Baoli.ttc SinoType 8.0d1e1 2012-06-19 GB2312
Libian SC Regular Libian.ttc SinoType 8.0d1e1 2012-06-19 GB2312
Lantinghei SC Extralight
Lantinghei SC Demibold
Lantinghei SC Heavy
Lantinghei TC Extralight
Lantinghei TC Demibold
Lantinghei TC Heavy
Lantinghei.ttc Founder 10.10d1 2014-03-22 GBK
GBK
GBK
Big Five [HK?]
Big Five [HK?]
Big Five [HK?]
Hannotate SC Regular
Hannotate SC Bold
Hannotate TC Regular
Hannotate TC Bold
Hannotate.ttc Dynacomware 10.0d1 2014-08-26 GB18030 [?]
Hanzipen SC Regular
Hanzipen SC Bold
Hanzipen TC Regular
Hanzipen TC Bold
Hanzipen.ttc Dynacomware 10.0d1e2 2014-08-26 GB18030 [?]
Wawati SC Regular
Wawati TC Regular
WawaSC-Regular.otf
WawaTC-Regular.otf
Dynacomware 8.0d1e1 2012-06-20 GB18030 [?]
Weibei SC Bold
Weibei TC Bold
WeibeiSC-Bold.otf
WeibeiTC-Bold.otf
Arphic 9.0d1e1 2012-12-20 GB2312
Big Five [HK?]
Yuppy SC Regular
Yuppy TC Regular
YuppySC-Regular.otf
YuppyTC-Regular.otf
Monotype 1.0d1e2
8.0d1e1
2012-06-19 GB18030 [?]

Getting Started

Input Menu

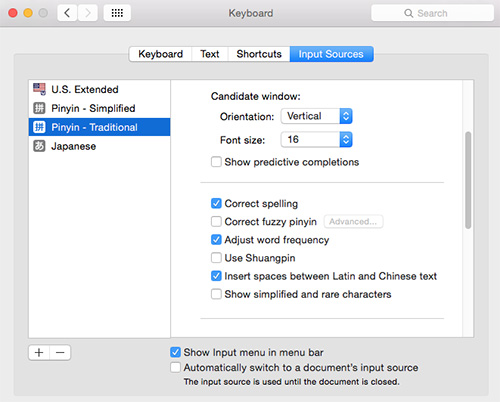

Under the Input Sources tab in System Preferences... Language & Region, go to "Keyboard Preferences...:

First, check the "Show Input menu in menu bar" box:

Then use the + sign to activate the Chinese input methods you want to use and cause them to appear in the Input menu:

Note: "Trackpad Handwriting" also appears here if you have a multi-touch trackpad. See: Using Trackpad Handwriting with Simplified or Traditional Chinese

Under the Keyboard tab, check the "Show Keyboard & Character Viewers in menu bar" box for easy access to the Character Viewer via the Input menu.

Under the Shortcuts tab, you will find two keyboard shortcuts listed under Input Sources. To enable them, you'll also need to disable them under Spotlight:

  • Command-space [⌘Space] ~ Selects the previous input source. Toggles back and forth between the last two input sources selected in the Input menu.
  • Option-command-space [⌥⌘Space] ~ Selects the next input source. Cycles through the keyboards and input methods in the Input menu.

The Chinese input methods will appear right away in the Input menu itself, which appears on the right side of the Menu bar:

To activate a keyboard or input method, choose it from the menu. Its icon will appear in the Menu bar and it will have a check mark beside it in the menu. In the above example, the U.S. Extended keyboard is followed by two Japanese input modes, the two Chinese Pinyin input modes, and the Character Viewer.

Input Methods

Help

Yosemite's built-in Chinese input methods include a full set of English-language help instructions:

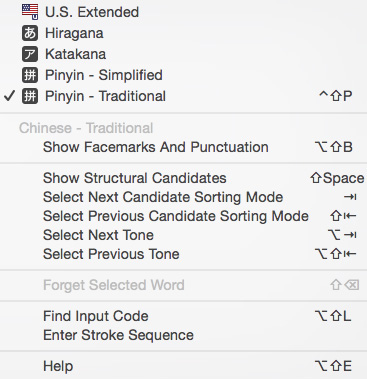

To access this Help, select an input mode in the Input menu. Its extended menu will appear, with Help at the bottom. Traditional-Chinese Pinyin, for example, looks like this:

Note: Apple's Help for the Chinese input methods is excellent. What follows below is a general description, not designed to be complete or especially helpful.

Key Sequences

After you have typed an appropriate input string for the input mode you are using, you can:

  • Use shift-space to invoke Structural Pinyin. [Pinyin only.]
  • Use the arrow keys to expand the horizontal Candidate window and navigate the list of candidates.
  • Use tab to change the candidate sorting mode:
    • Frequency [Pinyin, Zhuyin] = Displays candidates by frequency of use.
    • Radical [Pinyin, Zhuyin] = Displays candidates by radical, then number of remaining strokes.
    • Stroke [Pinyin] = Displays candidates by initial stroke, then total number of strokes.
    • Structure [Pinyin] = Displays "Structural Candidates" = Structural Pinyin

Structural Pinyin

Both Pinyin input modes provide access to the "Structural Pinyin" [結構拼音/结构拼音] input mode via shift-space, which covers the GB 18030-2000 character set. Standard Pinyin readings are used for the graphic and/or phonetic components of the structure of the character, usually left-right, top-bottom, inner-outer. These are listed as Chaizi [拆字, "Hanzi Components"] in the "Hanzi (Simplified)" section of the Character Viewer.

The purpose of this is to allow you to use Pinyin to input obscure characters that you don't otherwise know how to pronounce. For example, you probably don't know the pronunciation of 龘 (dá), but with a basic reading knowledge of Chinese you can see that it is composed of three dragons [龍 lóng], and thus you know its Structural Pinyin reading is long-long-long.

Note: In both the SCIM and TCIM input menus, this feature is translated as "Structural Candidates". The (simplified) Chinese text is 拆字组合的候选字.

Data

The user data for the Chinese input methods is stored in your Home ~/Library/Dictionaries folder. [Hidden by default in Yosemite. Hold down the option key as you access the Go menu in the Finder.] You can reset your dictionary and/or frequency data by trashing the various folders there. Just drag them to the Trash and log out/in.

Plug-ins

Plug-in input methods are easy to install. You simply create a plain-text source file, change the file extension to either ".inputplugin" (for the Apple format) or ".cin" (a common open-source format), and then place it in the /Library/Input Methods folder.

Character Viewer

Note: Use the little icon in the upper right corner to switch out of "Emoji & Symbols" mode and into the "Characters" mode shown here.

The Character Viewer is always accessible via Edit > Special Characters... To input characters into text in an application, just double-click on the character you want.

To add or remove the scripts and other categories of characters in the list on the right side, use the "Customize List..." command in the pop-up menu on the upper left:

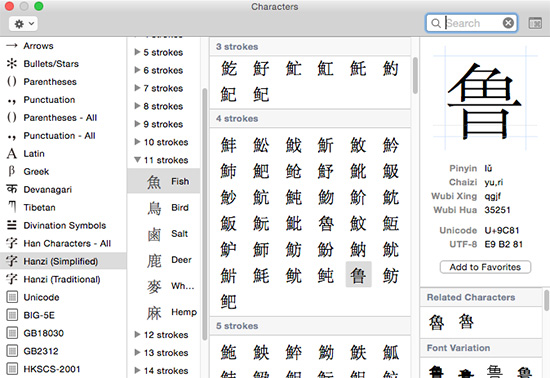

The East Asian Scripts heading contains three choices for Chinese hanzi:

  • Hanzi (Simplified) displays the GB 18030 character set by radical-stroke.
  • Hanzi (Traditional) displays the Big-5 character set by radical-stroke.
  • Han Characters - All displays all of Unicode's CJK Unified Ideographs, Extension A, and Extension B, together by radical-stroke. [Extensions C and D are not yet included here, but you can find them in the Unicode code table.]

The Code Tables heading contains tables for five encodings that include Chinese: Unicode, Big-5E, HKSCS-2001, GB2312, and GB18030. The Unicode table has a block index for Unicode 6.0. The others are strictly by code point. You can use these tables to determine if a given character is in a given character set. Select the character and switch between the tables.

On the left side is the Character Info section of the Character Viewer. You can drag/copy any character from an application and drop/paste it into this section to get information about that character. This includes the input key sequences for the Apple input methods and Unicode code points. Below that is a list of Related Characters, and below that is the Font Variation section, where you can see all available glyphs for the selected character in the different fonts on your system. Click on a glyph to display it and the font's name up above:

TextEdit

TextEdit 1.10 in Yosemite supports vertical-text layout for Chinese and Japanese. Use the Format > Make Layout Vertical/Horizontal command (also available in the contextual menu that appears when you control-click/right-click inside a document). TextEdit will convert Chinese punctuation to/from the vertical format for you, although the effectiveness of this depends on the font you are using (some fonts are better at vertical text than others).

You can customize the pop-up menu for encodings in Preferences > Open & Save. At the bottom of the menu is a "Customize Encodings List..." command, which brings you to a checklist of all supported encodings.
